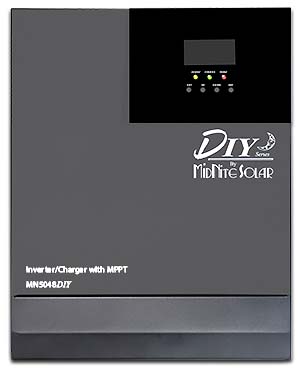

MN5048DIY
Inverter/Charger with MPPT
Model
Price
MAPP Price
Size
Shipping
Weight
MN5048DIY
$1,246.00
16.93"L x 13.31"W x 4.96"D
20"L x 16.5"W x 8"D
26 lbs
DESCRIPTION:
The MN5048DIY is a 5,000W, 48VDC inverter-charger with built-in MPPT charge controller.
Offering a simple, all-in-one installation and flexible programming, the new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry. Boasting a 5,000 watt continuous output, unlike many of its competitors. With excellent surge capability, the DIY Series will start the most demanding 120VAC loads. Perfect for your off-grid cabin or house, the DIY Series is designed to be affordable, dependable, and supported by the industry’s best customer service personnel at MidNite Solar. Manufactured for MidNite Solar in China.

SPECIFICATIONS
  • MAX Absorb Voltage 58.2v
  • MAX EQ Voltage 59.2v
  • System Voltage: 48VDC
  • AC Output operational from 40-60vdc
  • Max Rated Power: 5000W Continuous
  • Surge Power: 7000W
  • Power Factor: 1
  • Input Voltage: 120VAC
  • Input Voltage Range: 90-140VAC +- 2% Adjustable
  • Input/Output Frequency: 60Hz
  • Output Voltage: 120VAC +- 5%
  • Output Waveform: Pure Sine Wave
  • Peak Efficiency: >95%
  • Max AC Charging Current: 40A
  • Internal Bypass Current: Up to 63A
  • Conversion (Bypass and Invert): 10ms
  • Max PV Input Power: 5000W
  • Max PV Charging Current: 80A
  • Max PV Input Voltage: 500V
  • Algorithm: MPPT
  • MPPT Voltage Range: 120 - 450V
  • Battery Type: Lead Acid or Lithium
  • Max AC Battery Charging Current: 40A
  • Max PV Battery Charging Current: 80A
  • Battery Voltage Range: 40 - 60V DC
  • Operating Temperature: -15C ~ 55C
  • Storage Temperature: -25C ~ 60C
  • Humidity: 5% ~ 95% (3 Layer Paint Protection)
  • Warranty: 1 Year
