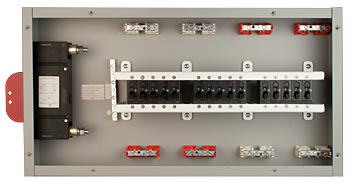

Mini DC Disconnect
MNDC15
|
Model
|
Price
|
Size
|
Shipping
|
Weight
|
|
MNDC15
|
$425.00
|
23"L x 12"W x 3.5"D
|
24"L x 13"W x 4"D
|
25 lbs
|
|
Model
|
MNDC15
|
|
Price
|
$425.00
|
|
Size
|
23"L x 12"W x 3.5"D
|
|
Shipping
|
24"L x 13"W x 4"D
|
|
Weight
|
25 lbs
|
DESCRIPTION:
General use enclosure for 15 panel mount type breakers from 5 - 100 Amp as well as a single 125, 175 or 250 amp breaker if so desired.
NOTE: Busbars and breakers sold separately.
NOTE: Busbars and breakers sold separately.
- Environmental Rating - Type 1 (Indoor)
- Warranty - 5 yrs.
- Made in the USA
California Residents: Warning
ACCESSORIES
MNEDC 5A thru 100A
5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount. 10,000 AIC
5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount. 10,000 AIC
MNEDCRT 175A to 250A
175 or 250 amp breaker, 125VDC 3/8" studs 1.5" AIC 50,000 at 125VDC
175 or 250 amp breaker, 125VDC 3/8" studs 1.5" AIC 50,000 at 125VDC
MNEDC-300 30A thru 80A
30, 60 or 80 Amp 300 VDC panel mount breaker. 10,000 AIC
30, 60 or 80 Amp 300 VDC panel mount breaker. 10,000 AIC
MNDC-GFP80
80 amp 150VDC panel mount DC ground fault protector (NRTL listed breaker assy) 1/2 amp trip mechanism connects between battery negative and earth ground NEC2008 requires DC-GFP’s on all solar installations.
80 amp 150VDC panel mount DC ground fault protector (NRTL listed breaker assy) 1/2 amp trip mechanism connects between battery negative and earth ground NEC2008 requires DC-GFP’s on all solar installations.
MNDC-GFP100RT-2P
100 amp 150VDC panel mount Dual DC ground fault protector (NRTL listed breaker assy)
100 amp 150VDC panel mount Dual DC ground fault protector (NRTL listed breaker assy)
MNEDC125RT
125amp 125VDC Panel Mount Breaker, 1 inch wide AIC 10,000 at 125VDC
125amp 125VDC Panel Mount Breaker, 1 inch wide AIC 10,000 at 125VDC
MNBREAKER PROTECTOR
The Breaker Protector will keep the 175 or 250 Amp Breaker from being accidentally hit.
The Breaker Protector will keep the 175 or 250 Amp Breaker from being accidentally hit.
MNSBB
(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. 180 amps. Four #6 and two 1/0 wire slots.
(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. 180 amps. Four #6 and two 1/0 wire slots.
