E-Panel - Victron
MNE125STMPII3KUL-P
|
Model
|
Price
|
Shipping
|
|
MNE125STMPII3KUL-P
|
$1,015.00
|
28" x 18 ½"x 10" (63.5 cm x 47 cm x 25.7 cm) 39 lb (17.7 kg)
|
|
Model
|
MNE125STMPII3KUL-P
|
|
Price
|
$1,015.00
|
|
Shipping
|
28" x 18 ½"x 10" (63.5 cm x 47 cm x 25.7 cm) 39 lb (17.7 kg)
|
DESCRIPTION:

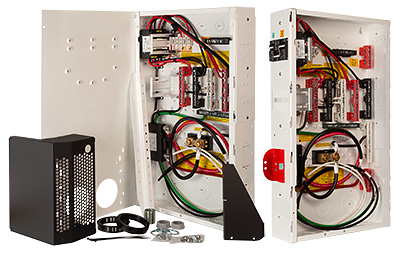

The MNE125STMPII3KUL-P and MNE125STMPII3KUL-F E-Panels were specifically designed for Victron Energy’s 3kVA/48 VDC Multi-Plus II (UL) inverter/charger. These E-Panels provide the additional components necessary to create a code compliant system - in a compact, affordable and professional panel for mounting a single inverter or for Series-Stacking* two 120V AC inverters.
The MNE125STMPII3KUL-P and MNE125STMPII3KUL-F E-Panels were specifically designed for Victron Energy’s 3kVA/48 VDC Multi-Plus II (UL) inverter/charger. These E-Panels provide the additional components necessary to create a code compliant system - in a compact, affordable and professional panel for mounting a single inverter or for Series-Stacking* two 120V AC inverters.
The E-Panel designed by MidNite Solar is the standard in off-grid systems - offered by professional Solar installers. The MNE125STMPII3KUL-P (Primary) provides the safety disconnects and connections for Leg 1 of a Series-Stacked inverter pair, and also includes the inverter system bypass. The MNE125STMPII3KUL-F (Follower) provides the safety disconnects and connections for Leg 2 of the Series-Stacked inverters pair.
An essential part of every Renewable Energy system is the over-current disconnects. The MidNite E-Panel uses custom manufactured RE circuit breakers to ensure systems have the proper protection for the many different AC and DC circuits involved. These E-Panels integrate high voltage PV input, charge controller outputs, inverter over-current protection, DC load circuits, AC input disconnect, AC input/output bypass, AC load circuits, DC-GFP circuit and wind turbine/hydro input circuits.
FEATURES
The E-Panel designed by MidNite Solar is the standard in off-grid systems - offered by professional Solar installers. The MNE125STMPII3KUL-P (Primary) provides the safety disconnects and connections for Leg 1 of a Series-Stacked inverter pair, and also includes the inverter system bypass. The MNE125STMPII3KUL-F (Follower) provides the safety disconnects and connections for Leg 2 of the Series-Stacked inverters pair.
An essential part of every Renewable Energy system is the over-current disconnects. The MidNite E-Panel uses custom manufactured RE circuit breakers to ensure systems have the proper protection for the many different AC and DC circuits involved. These E-Panels integrate high voltage PV input, charge controller outputs, inverter over-current protection, DC load circuits, AC input disconnect, AC input/output bypass, AC load circuits, DC-GFP circuit and wind turbine/hydro input circuits.
FEATURES
- Pre-wired to save time, money and complexity.
- All field wiring connections clearly labeled.
- A built-in AC bypass switch with full inverter current capability, and a DC disconnect breaker for safe and easy isolation for servicing of the inverter and/or battery bank.
- Battery to inverter/charger DC disconnect breaker (125 Amps).
- Inverter AC input over current protection breakers.
- DIN mount AC and DC breakers for quick and easy operation.
- A 500A/50mV DC shunt installed for easy connection to battery status monitor.
- Enclosure and components are UL/CSA certified and designated for indoor use.
- Configurations available for both single 120V and 120/240V AC systems.
- DC negative, positive and ground busbars for DC loads and PV arrays included.
- Mounting provided for DIN rail DC load/disconnect breakers.
- White powder-coated steel enclosure.
- Mounting hardware for inverter and charge controller.
- Mounting brackets for hanging E-panel on wall.
- Knockouts for inverter/charger and battery cables, PV in/out, DC panel mount breakers.
- Integrates directly with Victron Energy’s 3kVA/48V DC Multi-Plus II (UL) inverter/charger.
