MNBRAT

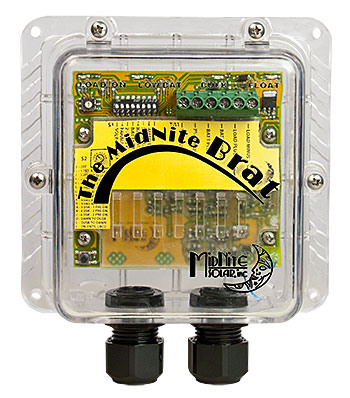

The BRAT Charge Controller sold individually or in packs of 10.
|
Model
|
Price
|
Size
|
Shipping
|
Weight
|
|
MNBRAT
|
$140.00 ea.
|
6.75"L x 6"W x 2.75"D
|
7.75"L x 7.75"W x 3.75"D
|
1.5 lbs
|
|
Model
|
MNBRAT
|
|
Price
|
$140.00 ea.
|
|
Size
|
6.75"L x 6"W x 2.75"D
|
|
Shipping
|
7.75"L x 7.75"W x 3.75"D
|
|
Weight
|
1.5 lbs
|
DESCRIPTION:
The BRAT Charge Controller sold individually or in packs of 10.
The Brat is simply the most versatile solar controller in its class. The Brat is a finely-tuned solar PWM charger capable of providing up to 30 Amps of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock.
Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications.
The Brat doesn't skimp on features, including temperature-compensated charging, manual and 30-day automatic equalize, and at an affordable price too!
The Brat is simply the most versatile solar controller in its class. The Brat is a finely-tuned solar PWM charger capable of providing up to 30 Amps of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock.
Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications.
The Brat doesn't skimp on features, including temperature-compensated charging, manual and 30-day automatic equalize, and at an affordable price too!
- SELECTABLE CHARGING MODES
20A charger with 10A load control, 30A charger without load control - NO RELAYS, NO FANS, NO EXTERNAL HEAT-SINK
- TYPE 3R ENCLOSURE
- P/V INPUT VOLTAGE MAXIMUM - 60 volts
- LED's
Four LED's for Bulk, Float, Load On and Low Battery. Patterned blinking LED's provide feedback about fault conditions. - NOMINAL BATTERY VOLTAGE
12 or 24V - Selectable - 10 AMPS MAXIMUM LOAD CIRCUIT RATING
- LOAD CIRCUIT
A unique feature of the Brat is the load circuit. This versatile feature can be used for many purposes including running well pumps, electric fences, or billboard lights in remote areas. - CUSTOMIZABLE LIGHTING CONTROLLER
The Brat sports a highly customizable 16 position rotary switch lighting controller. - COMPACT DESIGN
We understand space can be a struggle in a boat or RV. With that in mind we kept the physical design of the Brat compact without sacrificing performance. - SEALED FOR HARSH ENVIRONMENTS
All Brats are weather proof, sealed in a clear UV stabilized polycarbonate housing! (Type 3R/IP55). - REPAIRABLE
Field repairable printed circuit board (by a qualified technician) - BUILT IN ARLINGTON, WA - USA
California Residents: Warning
ACCESSORIES
MNPV3 - $154.00
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.
MNSBB - $23.00
(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. 180 amps. Four #6 and two 1/0 wire slots.
(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. 180 amps. Four #6 and two 1/0 wire slots.
MNSBBN - $12.00
MNSBBN - 2.3" long. Two 1/0 & four #6 wire slots. 180 amps. Comes with mounting screw& nut #10-32 x 7/8". Made in USA, NRTL recognized.
MNSBBN - 2.3" long. Two 1/0 & four #6 wire slots. 180 amps. Comes with mounting screw& nut #10-32 x 7/8". Made in USA, NRTL recognized.
MNBABYBOX - $59.00
General use powder coated aluminum enclosure for retrofits, small inverter disconnect, PV disconnect, AC or DC distribution.
General use powder coated aluminum enclosure for retrofits, small inverter disconnect, PV disconnect, AC or DC distribution.
MNBIGBABY - $71.00
General use enclosure - holds up to 4 13mm wide din rail breakers from 1-63 amps.
General use enclosure - holds up to 4 13mm wide din rail breakers from 1-63 amps.
MNEDCQUAD - $92.00
General use aluminum enclosure for 4 panel mount type breakers from 5 - 100 Amp.
General use aluminum enclosure for 4 panel mount type breakers from 5 - 100 Amp.
MNSPD-115 - $135.00
The MidNite Solar 115V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for battery circuits.
The MidNite Solar 115V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for battery circuits.
MNSPD-300-DC - $135.00
The MidNite Solar 300V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for Classic and other charge controllers, off grid PV combiners and 120/240 VAC circuits.
The MidNite Solar 300V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for Classic and other charge controllers, off grid PV combiners and 120/240 VAC circuits.
MNEPV BREAKERS - $22.00
150VDC din rail mount breaker available in 1 to 63 amps (13mm wide).
150VDC din rail mount breaker available in 1 to 63 amps (13mm wide).
MNEDC 5A thru 100A - $27.00
5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount. 10,000 AIC
5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount. 10,000 AIC
