Combiners - AC Micro Inverter (Example - Enphase)
MNPV6-DISCO AC MICRO
|
Model
|
Price
|
Size
|
Shipping
|
Weight
|
|
MNPV6-DISCO AC MICRO
|
$375.00
|
13.2"L x 8"W x 6.2"D
|
15"L x 9"W x 7.25"D
|
7 lbs
|
|
Model
|
MNPV6-DISCO AC MICRO
|
|
Price
|
$375.00
|
|
Size
|
13.2"L x 8"W x 6.2"D
|
|
Shipping
|
15"L x 9"W x 7.25"D
|
|
Weight
|
7 lbs
|
DESCRIPTION:
Enclosure only - NOT COMPATIBLE WITH THE BIRDHOUSE.

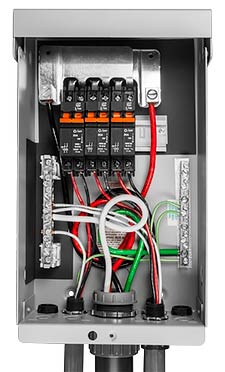

This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters.
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters.
The MNPV6-DISCO AC MICRO's red handled is LOCKABLE IN THE OFF POSITION!

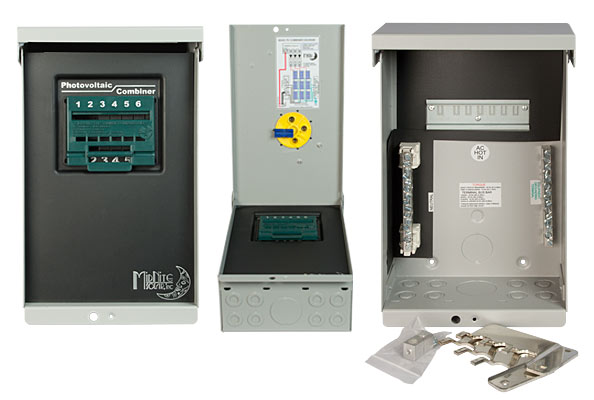

This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters. Can be used up to 150 amps and 1/0 wire. Load break rated. Lockable in the off position. Included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER
Depending upon the model number, you can use:
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters. Can be used up to 150 amps and 1/0 wire. Load break rated. Lockable in the off position. Included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER
Depending upon the model number, you can use:
- Type 3R environmental rating
- DC 600V (1 circuit Pos or Pos and Neg switched) Part no. MNPV6
- DC 300V (3 circuits) Part #MNPV6-250
- DC 150V (6 circuits) Part #MNPV6
- AC 120v 20 amps (6 circuits) Part #MNPV6
- AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro
- AC and DC can be installed in the same box!
Example:
600Vdc 20 amp PV in and 40 amp 240Vac Inverter output - Lockable Disconnect
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
California Residents: Warning
ACCESSORIES
MNSPD-300-AC - $135.00
The MidNite Solar 300V AC Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for 120 VAC and 120/240 VAC circuits.
The MidNite Solar 300V AC Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for 120 VAC and 120/240 VAC circuits.
MNEAC-2P 15A thru 25A - $45.50
15, 20 & 25 amp din rail mount 120/240 VAC Branch circuit rated 489 two pole. 10,000 AIC
15, 20 & 25 amp din rail mount 120/240 VAC Branch circuit rated 489 two pole. 10,000 AIC
MNEAC-2P 30A thru 60A - $45.50
30, 50, 60 amp din rail mount 120/240 VAC Supplementary protection 1077 two pole. 3,000 AIC
30, 50, 60 amp din rail mount 120/240 VAC Supplementary protection 1077 two pole. 3,000 AIC
MNPV6-DISCO-SLIDER - $12.00
Replacement Slider for the MNPV6 Disco.
Replacement Slider for the MNPV6 Disco.
MNSR-1000-25PK - $74.50
This 1/2 in 1000V Heyco Strain Relief accepts two 6mm PV wires. Nut is included.
This 1/2 in 1000V Heyco Strain Relief accepts two 6mm PV wires. Nut is included.
