E-Panel - SMA

Printer Friendly Version

MNE250SMA-OG SINGLE

Model	Price	Shipping	Weight
MNE250SMA-OG SINGLE	$1,355.00	25"L x 23"W x 14"D	40 lbs

Model	MNE250SMA-OG SINGLE
Price	$1,355.00
Shipping	25"L x 23"W x 14"D
Weight	40 lbs

Model Options

Model	Price	Shipping	Weight	Description
MNE250SMA-OG-SINGLE-E	$1,355.00	25"L x 23"W x 14"D	40 Lbs.	The MNE250SMA-OG-SINGLE-E is our Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter.

Model Options

Model	MNE250SMA-OG-SINGLE-E
Price	$1,355.00
Shipping	25"L x 23"W x 14"D
Weight	40 Lbs.
Description	The MNE250SMA-OG-SINGLE-E is our Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter.

DOCUMENTS

WEBINAR/VIDEOS

PHOTO DOWNLOAD

DESCRIPTION:

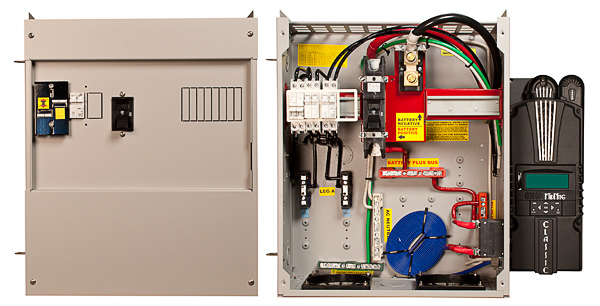

The MNE250SMA-OG-SINGLE The Off Grid Single is designed for a single Sunny Island off grid system. It includes the 60amp, 120vac Manual input/output bypass system along with separate 60amp, 120vac AC input and output breakers. Comes with a 250amp battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring.

Classic and Classic wiring do not come with this unit and are shown as an option only!

NOTE: Classic charge controllers are sold separately.
Master E-Panel for a single off-grid or battery backup 120VAC Sunny Island inverter system

Comes with:

Environmental Rating - Type 1 (Indoor)
60amp, 120vac AC output/bypass assembly and independent 60amp
120vac AC input and output breakers
2 Extra spaces on the face to the Left of the main battery breaker for the white bodied (MNEACQZD) CBI Din Rail breakers
8 Extra spaces on the face to the Right of the main battery breaker for the black bodied (MNEAC or MNEPV) CBI Din Rail breakers
4 Spaces on the left side and 6 spaces on the right side of the chassis for the Panel mount 3/4 inch breakers (MNEDC)
500A/50mV shunt (MNSHUNT)
Neutral and AC IN and OUT terminal busbars
250amp battery breaker with inverter cables
AC wiring to inverter.

NOTE: A back plate is recommended for the proper wiring alignment of the Sunny Island.

Warranty - 5 yrs.
Listed by ETL for US & Canada
Made in the USA

California Residents: Warning

ACCESSORIES

CLASSIC 150-SL
The Classic 150-SL MPPT Charge Controller - Listed by ETL for US & Canada CE Certified FCC Class B

CLASSIC 200-SL
The Classic 200-SL MPPT Charge Controller - Listed by ETL for US & Canada CE Certified FCC Class B

CLASSIC 250-SL
The Classic 250-SL MPPT Charge Controller - Listed by ETL for US & Canada CE Certified FCC Class B

MNSPD-300-AC
The MidNite Solar 300V AC Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for 120 VAC and 120/240 VAC circuits.

CLASSIC 150
The Classic 150 MPPT Charge Controller - Listed by ETL for US & Canada CE Certified FCC Class B

CLASSIC 200
The Classic 200 MPPT Charge Controller - Listed by ETL for US & Canada CE Certified FCC Class B

CLASSIC 250
The Classic 250 MPPT Charge Controller - Listed by ETL for US & Canada CE Certified FCC Class B

MNSPD-300-DC
The MidNite Solar 300V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for Classic and other charge controllers, off grid PV combiners and 120/240 VAC circuits.

MNBCM
Battery Capacity Meter

MNEDC 5A thru 100A
5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100 amp 150VDC Panel Mount. 10,000 AIC

MNEPV BREAKERS
150VDC din rail mount breaker available in 1 to 63 amps (13mm wide).

MNEDC-300 30A thru 80A
30, 60 or 80 Amp 300 VDC panel mount breaker. 10,000 AIC

MNXFLEX2/0
2/0 Cobra X-Flex battery cable with tin plated lugs and glue filled white or red heat shrink. UL Listed.

MNXFLEX4/0
4/0 Cobra X-Flex battery cable with tin plated lugs and glue filled white or red heat shrink. UL Listed.

MNXFLEX2AWG
2 AWG Black UL Listed Cobra X-Flex battery cable.
