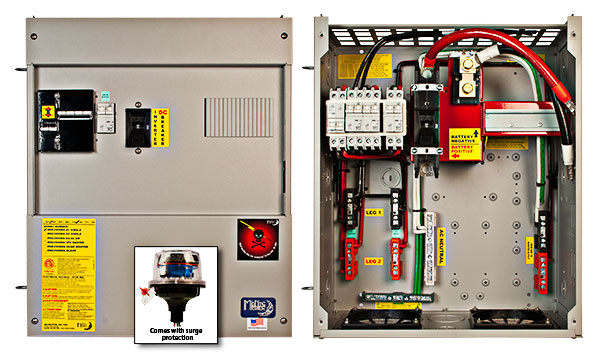

MNE250SMA-AC-SINGLE master E-Panel

The master includes the input/output 60amp, 120/240vac bypass system along with separate 60 amp, 120/240vac AC input and output breakers. This E-Panel can be used in conjunction with a Sunny Island inverter. Comes with a 250amp battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring.

RS485 boards are required when AC Coupling to SunnyBoy inverters if 3 stage charging is desired. One RS485 board goes into the Sunny Island inverter and each SunnyBoy Inverter. AC Coupling to the SunnyBoy grid-tie inverter is possible without RS485 boards. The Sunny Island grid-tie inverter will frequency shift based on battery voltage to knock the grid-tie inverter off line. SunnyBoy inverters can switch between off-grid and grid-tie mode automatically when RS485 boards are used. To program this feature you must use either a SMA service cable (USBPBS) or SMA web box (SUNNYWEBBOXU).

Comes standard with one MNSPD-300.

NOTE: A back plate is recommended for the proper wiring alignment of the Sunny Island.

• Environmental Rating - Type 1 (Indoor)
• 60amp, 120vac AC output/bypass assembly and independent 60amp
• 120vac AC input and output breakers
• 60amp, 240vac breakers and bus bar for the Grid tie inverter input
• 8 Extra spaces on the face to the Right of the main battery breaker for the black bodied (MNEAC or MNEPV) CBI Din Rail breakers
• 4 Spaces on the left side and 6 spaces on the right side of the chassis for the Panel mount 3/4 inch breakers (MNEDC)
• 500A/50mV shunt (MNSHUNT)
• Neutral, Ground, AC IN, AC OUT and Grid Tie IN terminal busbars
• 250amp battery breaker with inverter cables
• AC wiring to inverter.
• Warranty - 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA
