MNE250SMA-3PH MASTER
|
Model
|
Price
|
Shipping
|
Weight
|
|
MNE250SMA-3PH MASTER
|
$1,682.00
|
25"L x 23"W x 14"D
|
40 lbs
|
|
Model
|
MNE250SMA-3PH MASTER
|
|
Price
|
$1,682.00
|
|
Shipping
|
25"L x 23"W x 14"D
|
|
Weight
|
40 lbs
|
DESCRIPTION:

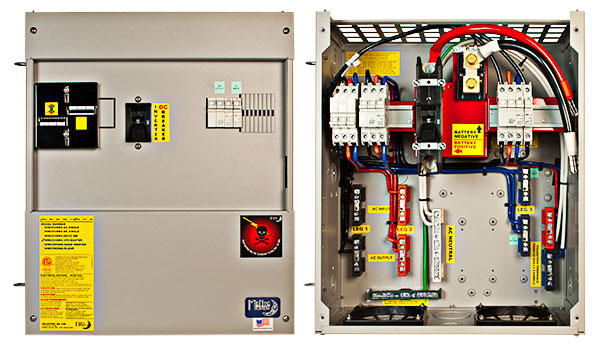

The MNE250SMA-3PH Master E-Panel works with 2 of the MNE250SMA-Slave E-Panels to create a 3 phase system. The MNE250SMA-3PH 3 phase master includes the 3 phase 60amp input/output bypass system. This E-Panel can be used in conjunction with a Sunny Island inverter as part of a 3 phase off-grid, battery backup or AC Coupled system. Terminals are provided for hookup to leg 2 and leg 3 E-Panels. Comes with 250A battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring for leg 1 (master) inverter. (Two slaves are also required for 3 phase.)
Master E-Panel in a 3 phase system.
Two slaves are also required for 3 phase.
The 3 phase master includes the 3 phase 60amp input/output bypass system. This E-Panel can be used in conjunction with a Sunny Island inverter as part of a 3 phase off-grid, battery backup or AC Coupled system. Terminals are provided for hookup to leg 2 and leg 3 E-Panels. Comes with 250amp battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring for leg 1 (master) inverter. (Two slaves are also required for 3 phase.)
This E-Panel does not come with a relay board, RS485 (485USPD-NR) boards or MNSPD lightning protection. RS485 boards are required when AC Coupling to SunnyBoy inverters if 3 stage charging is desired. One RS485 board goes into the master inverter and each SunnyBoy Inverter. AC Coupling to a SunnyBoy or any other grid-tie inverter is possible without RS485 boards. The Sunny Island inverter will frequency shift based on battery voltage to knock the grid-tie inverter off line. SunnyBoy inverters can switch between off-grid and grid-tie mode automatically when RS485 boards are used. To program this feature you must use either SMA service cable (USBPBS) or SMA web box (SUNNYWEBBOXU).
NOTE: A back plate is recommended for the proper wiring alignment of the Sunny Island.
Two slaves are also required for 3 phase.
The 3 phase master includes the 3 phase 60amp input/output bypass system. This E-Panel can be used in conjunction with a Sunny Island inverter as part of a 3 phase off-grid, battery backup or AC Coupled system. Terminals are provided for hookup to leg 2 and leg 3 E-Panels. Comes with 250amp battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring for leg 1 (master) inverter. (Two slaves are also required for 3 phase.)
This E-Panel does not come with a relay board, RS485 (485USPD-NR) boards or MNSPD lightning protection. RS485 boards are required when AC Coupling to SunnyBoy inverters if 3 stage charging is desired. One RS485 board goes into the master inverter and each SunnyBoy Inverter. AC Coupling to a SunnyBoy or any other grid-tie inverter is possible without RS485 boards. The Sunny Island inverter will frequency shift based on battery voltage to knock the grid-tie inverter off line. SunnyBoy inverters can switch between off-grid and grid-tie mode automatically when RS485 boards are used. To program this feature you must use either SMA service cable (USBPBS) or SMA web box (SUNNYWEBBOXU).
NOTE: A back plate is recommended for the proper wiring alignment of the Sunny Island.
- Environmental Rating - Type 1 (Indoor)
- 60amp, 3 phase AC output/bypass assembly
- 3 phase AC input and output breakers
- 2 Extra spaces on the face to the Left of the main battery breaker for the white bodied (MNEACQZD) CBI Din Rail breakers
- 4 Extra spaces on the face to the Right of the main battery breaker for the black bodied (MNEAC or MNEPV) CBI Din Rail breakers
- 4 Spaces on the left side and 6 spaces on the right side of the chassis for the Panel mount 3/4 inch breakers (MNEDC)
- 500A/50mV shunt (MNSHUNT)
- Neutral, Ground, AC IN, AC OUT and Slave busbars
- 250amp battery breaker with inverter cables
- AC wiring to inverter.
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
