Inverter Systems, Pre Wired - Off Grid
MNSW4024-CL150
(Schneider Off Grid)
|
Model
|
Price
|
Size
|
Shipping
|
Weight
|
|
MNSW4024-CL150
|
$7,249.00
|
40"L x 20"W x 9"H
|
52"L x 40"W x 21"H
|
185 lbs
|
|
Model
|
MNSW4024-CL150
|
|
Price
|
$7,249.00
|
|
Size
|
40"L x 20"W x 9"H
|
|
Shipping
|
52"L x 40"W x 21"H
|
|
Weight
|
185 lbs
|
DESCRIPTION:

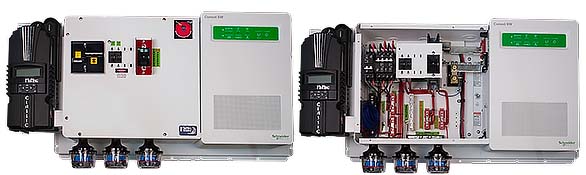

Pre Wired Schneider Electric Conext SW4024 120/240 vac Inverter for Off grid.
4,000 watt 24 volt inverter.
AC Bypass Assembly included
Classic 150 installed.
4,000 watt 24 volt inverter.
AC Bypass Assembly included
Classic 150 installed.
MidNite Solar pre-wired inverter systems offer a turn key solution to installing a battery based inverter system, saving you time in the field. With a pre-wired solution all of the confusion is taken out of selecting all the right parts. This system uses the Schneider Electric Conext SW inverter that is rated at 4,000 watts and uses a 24 volt battery. It produces 120/240 volts AC. Dont forget to look at our other products that compliment the pre-wired inverter system like our
Battery Boxes
or Disconnecting Combiners.
Our pre wired systems can be configured in about any way needed with any of the common battery based inverters (except Outback). Please contact us for a quote if the System you need is not listed. Below is a simple list of the major components included in the system.
The Whizbang Jr (MNWBJR) current sense module for Classic provides battery state of charge and is included with this product.
FEATURES:
NOTE: MidNite does not warranty Schneider components.
The Whizbang Jr (MNWBJR) current sense module for Classic provides battery state of charge and is included with this product.
FEATURES:
- Environmental Rating - Type 1 (Indoor)
- Schneider Electric Conext SW Pre-Wired 4024 120/240 vac Inverter for Off Grid
- SW E-Panel
- MidNite Back Plate (MNSW-BP)
- AC Bypass Assembly
- Classic 150 charge controller with DC-GFP (Ground Fault protection) and Arc Fault protection built in.
- Three MNSPD300's (Surge Protection Devices)
- 250 amp Battery Main Breaker for the SW Inverter
- Warranty - All MidNite components have a 5 year warranty. SW Inverters are covered by Schneider's manufacturers warranty.
- MidNite E-Panel, Classic Charge Contoller and SPD's made in the USA
- Schneider SW Inverter made in India
- Listed by ETL for US & Canada.
- General labor for assembly, test and crating included
- Schneider Conext Insight Home included
NOTE: MidNite does not warranty Schneider components.
California Residents: Warning
We DO NOT accept returns on Pre-Wired systems, battery cables or custom built equipment.
ACCESSORIES
MNBCM - $94.00
Battery Capacity Meter
Battery Capacity Meter
MNXFLEX2/0
2/0 Cobra X-Flex battery cable with tin plated lugs and glue filled white or red heat shrink. UL Listed.
2/0 Cobra X-Flex battery cable with tin plated lugs and glue filled white or red heat shrink. UL Listed.
MNXFLEX4/0
4/0 Cobra X-Flex battery cable with tin plated lugs and glue filled white or red heat shrink. UL Listed.
4/0 Cobra X-Flex battery cable with tin plated lugs and glue filled white or red heat shrink. UL Listed.
MNBE-A - $799.00
Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf.
Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf.
MNBE-D - $1125.00
Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries.
Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries.
MNEPV BREAKERS - $22.00
150VDC din rail mount breaker available in 1 to 63 amps (13mm wide).
150VDC din rail mount breaker available in 1 to 63 amps (13mm wide).
MNSPD-300-DC - $135.00
The MidNite Solar 300V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for Classic and other charge controllers, off grid PV combiners and 120/240 VAC circuits.
The MidNite Solar 300V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for Classic and other charge controllers, off grid PV combiners and 120/240 VAC circuits.
MNPV3 - $154.00
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.
MNPV6 - $191.00
Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept six 150VDC breakers or 4 600VDC fuse holders.
Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept six 150VDC breakers or 4 600VDC fuse holders.
MNPV6-Disco - $335.00
This 3R MNPV6 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model holds up to 6 poles of our common MNEPV and or MNEAC CBI breaker. This model will support several different configurations.
This 3R MNPV6 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model holds up to 6 poles of our common MNEPV and or MNEAC CBI breaker. This model will support several different configurations.
