Busbars

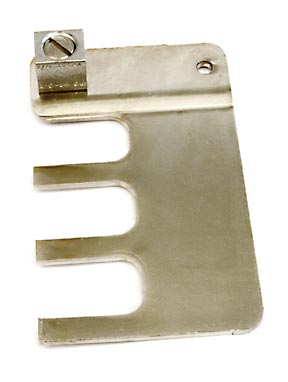

MNPV6-250 BUSBAR
Requires 2 of these for MNPV12-250
|
Model
|
Price
|
Shipping
|
Weight
|
|
MNPV6-250 BUSBAR
|
$54.00
|
5"L x 4"W x 3"D
|
2 lbs
|
|
Model
|
MNPV6-250 BUSBAR
|
|
Price
|
$54.00
|
|
Shipping
|
5"L x 4"W x 3"D
|
|
Weight
|
2 lbs
|
DESCRIPTION:
1/8" thick tin plated copper accommodates up to three 300VDC MidNite circuit breakers.
This bus bar is used in the MNPV6-250, The MNPV6-250Disco and two of them are used in the MNPV12-250
Current Rating: 168A
Breaker and Busbar Torque Values
This bus bar is used in the MNPV6-250, The MNPV6-250Disco and two of them are used in the MNPV12-250
Current Rating: 168A
Breaker and Busbar Torque Values
1/8" thick tin plated copper accommodates up to three 300VDC MidNite circuit breakers. The 300V circuit breakers have input and output connections on the top surface. These busbars are not for use with 150VDC breakers or touch safe fuse holders. Current rating 168 amps. Comes with a 2/0 box lug and hardware.
- Environmental Rating - Type 1 (Indoor)
- Warranty - 5 yrs.
California Residents: Warning
ACCESSORIES
MNPV6-250 - $205.00
Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept three 300 VDC MidNite Solar breakers.
Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept three 300 VDC MidNite Solar breakers.
MNPV12-250 - $342.00
Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 6 300VDC breakers.
Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 6 300VDC breakers.
MNPV6-250 DISCO - $346.00
This 3R MNPV6-250 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model includes the buss-bar to use up to 3 of our 300 volt DC breakers as a 3 string DC combiner.
This 3R MNPV6-250 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model includes the buss-bar to use up to 3 of our 300 volt DC breakers as a 3 string DC combiner.
