MNEAC-3P 30A thru 60A

VAC Breaker
MNEAC30-3P, MNEAC50-3P, MNEAC60-3P

Model	Price	Size	Weight
MNEAC-3P 30A thru 60A	$70.50	Width 1.5 (39mm)	1 lbs

Model	MNEAC-3P 30A thru 60A
Price	$70.50
Size	Width 1.5 (39mm)
Weight	1 lbs

Model Options

Model	Price
MNEAC30-3P	$70.50
Model	Price
MNEAC50-3P	$70.50
Model	Price
MNEAC60-3P	$70.50

Model Options

Model	MNEAC30-3P
Price	$70.50
Model	MNEAC50-3P
Price	$70.50
Model	MNEAC60-3P
Price	$70.50

DOCUMENTS

WEBINAR/VIDEOS

PHOTO DOWNLOAD

DESCRIPTION:

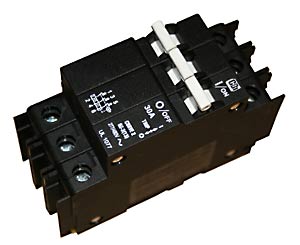

Black 30, 50 & 60 amp din rail mount 277VAC Supplementary protection 1077 triple pole.
3,000 AIC

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

Breaker Torque Value: 20 In-Lbs (2.3NM)

Width 1.5 inch (39mm)
Environmental Rating - Type 1 (Indoor)
Listed for US & Canada
